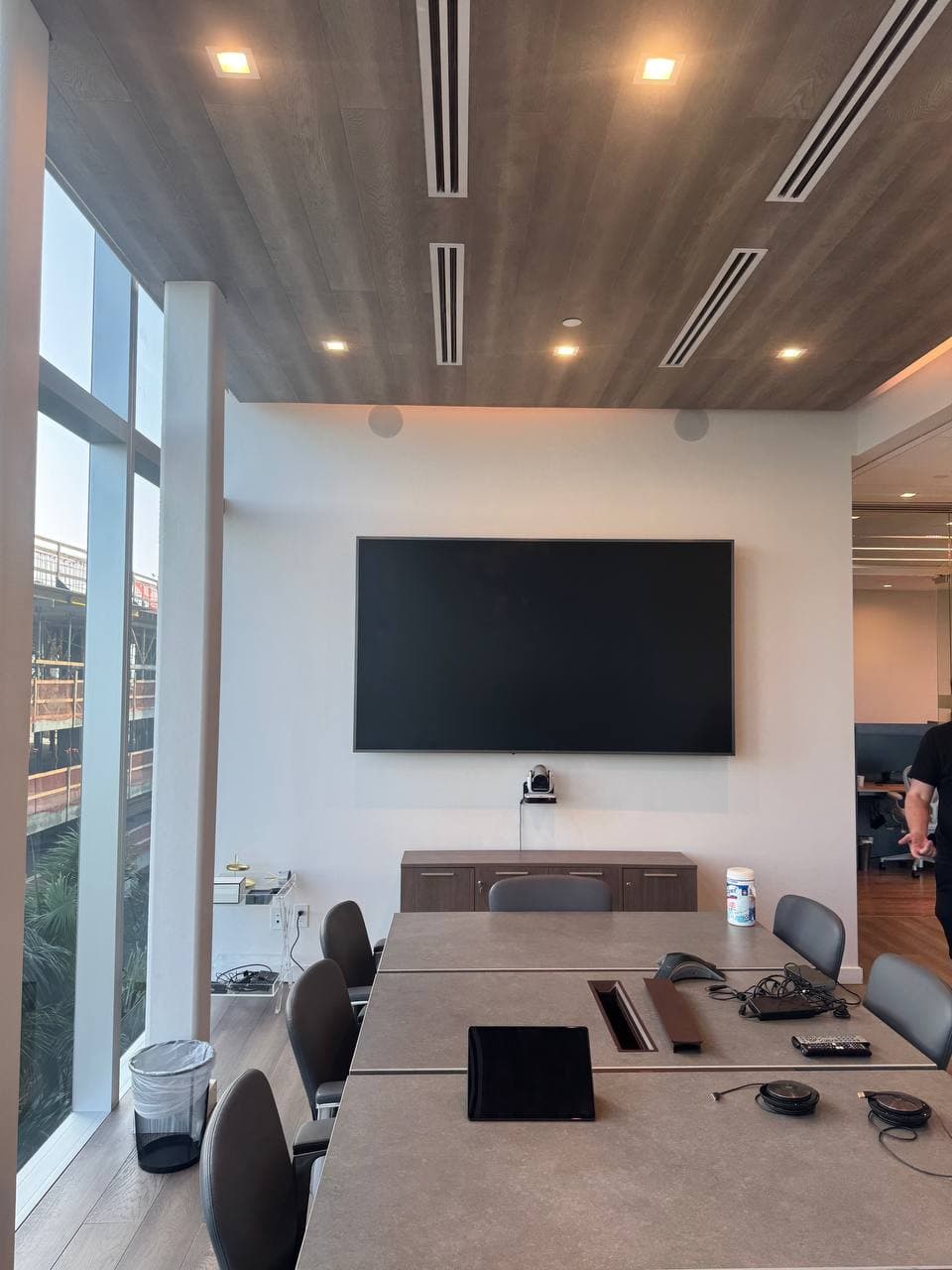

This North Miami Beach job was a conference room install, not a living room one — a 100-inch Samsung display going up on interior metal-stud framing, with full cable concealment through the drop ceiling above it. Two things residential mounts rarely deal with: real commercial weight, and a ceiling space that has its own rules.
A 180-pound TV changes what "secure" means
Samsung's 100-inch commercial-class panels run in the neighborhood of 180 lbs — nowhere near a 55-inch living room set, and well past what the mount in the box is built for. The bundled hardware on a TV this size is typically rated for something like 75 kg (~165 lbs) at most; a display pushing 180 lbs needs a separate, higher-rated commercial mount matched to its actual VESA pattern (600×400mm on this model) before anything goes anywhere near the wall.
Metal studs don't take wood-stud hardware
Interior office partitions are almost always steel, not lumber — thin-gauge (often 25-gauge) hollow studs about 1.25 inches wide, which means a standard wood screw or drywall anchor has nothing real to bite into. We locate the studs with a magnetic finder (steel gives a direct, reliable hit that a standard stud finder can miss) and anchor with heavy-duty snap toggles, one aligned to each stud location behind the mount plate. Each toggle in this gauge steel is rated in the 250-300 lb range with a safety margin built in, so spreading a 180-lb display across four to six of them isn't a stretch — but only if every toggle is seated straight and torqued to snug, not cranked past it. Over-tighten a toggle in thin steel and it spins the channel instead of holding it, which is the one mistake that actually costs you the hold.
The ceiling check most residential jobs never need
Conference rooms usually sit under a drop ceiling, and not every drop ceiling is the same from a code standpoint — the distinction is whether that space above the tiles is used to return air to the building's HVAC system. If it is, NEC 800.113(C) requires plenum-rated (CMP) cable for anything routed through it instead of standard jacketed cable, because a standard jacket burning in a space the building's air actually moves through is a real fire-spread risk. It's a five-minute check before the first cable goes up — is this a return-air space or not — and it's the one step a residential-only install crew might not think to ask, because a house doesn't have this problem at all.
The result: a 100-inch commercial display holding securely on steel framing built for something a fraction of its weight, with cable concealment planned around the ceiling type it actually runs through, not a one-size-fits-all assumption.
Planning a commercial or conference-room TV installation in North Miami Beach or anywhere in South Florida? Hero TV Mount handles heavy commercial displays and code-compliant cable runs — call or text (754) 340-1000 to schedule.
